accelerator pedal plastic pin on freightliner p500

HomeDelivery

Well-Known Member
so this stepvan, in general, are pretty good in design/longevity

until i saw the following:

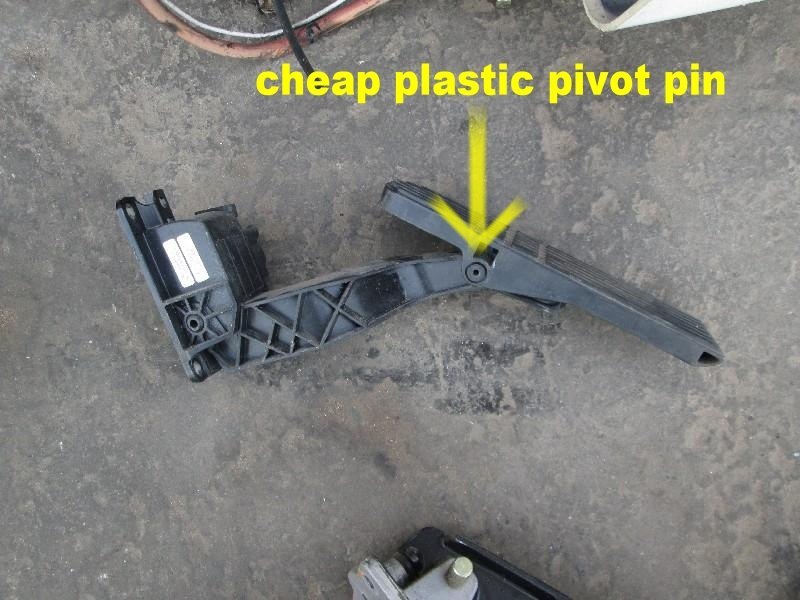

gas pedal plastic pivot pin.JPG

:dead:

crappy plastic gets brittle over time & cracks... wtf was freightliner thinking of putting a plastic piece on a part that has a load most of the time?!?

most other make/models with a swivel-type gas pedal have a metal pin on that location...

so off to the hardware store:

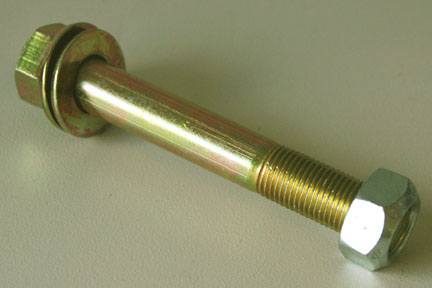

bolt n washer n nut.jpg


either use a locking nut or some loctite on the end...

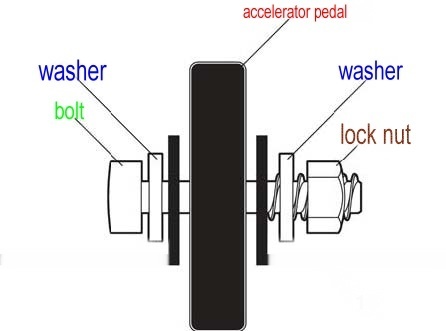

how to set up bolt on pedal.JPG


come on freightliner, pinch your pennies elsewhere...

i did have this pedal came off on me 2x now & it didn't affect the driveability of the vehicle, so i fixed them when i was done with the route. (of course the contractors who owned these vehicles re-imbursed me for the cost of the bolts/nuts/washers)

i feel sorry for those that have it break at the other pivot point near the other end... just like on a $$$ MERCEDES $$$ one:
